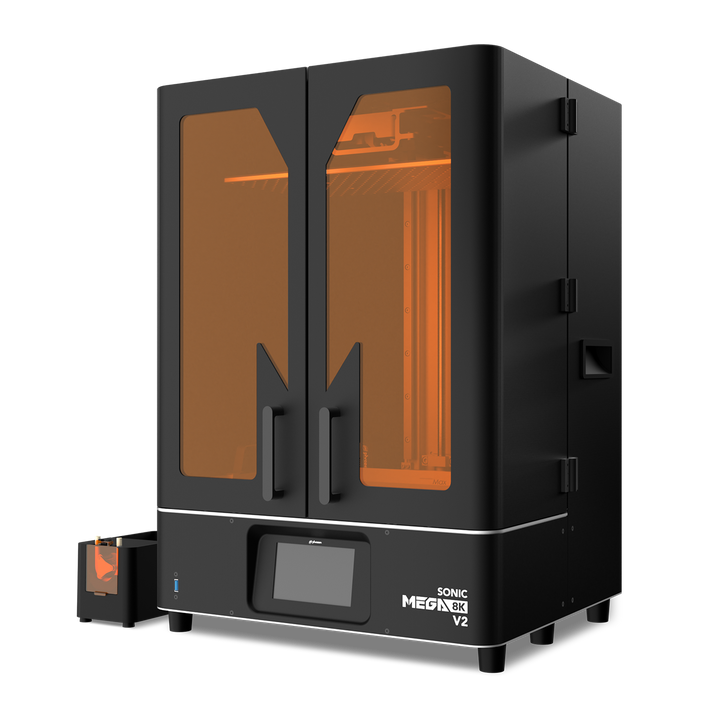

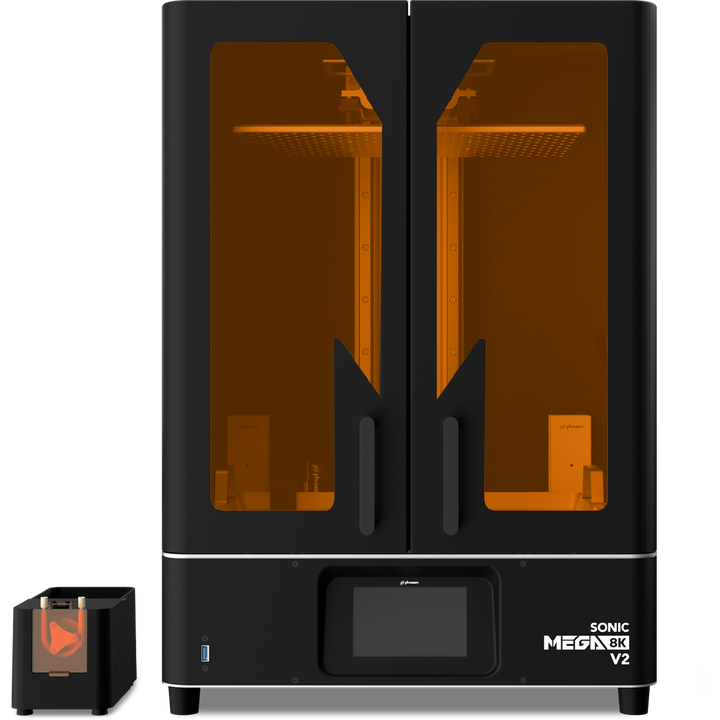

Phrozen Sonic Mega 8K V2 15" LCD 3D Printer
The Phrozen Sonic Mega 8K V2 is a powerhouse resin 3D printer that combines ultra-high detail and impressive scale. Featuring a massive 15″ 8K monochrome LCD and a generous 33 × 18.5 × 40 cm build volume, it delivers crisp 43 μm XY resolution while offering efficient, large-scale printing for professionals and creators alike
Features
- Extra-large 15" XY printing area.
- New firmware for faster speed.
Reduce Turnaround Time From Days to Hours
Develop multiple iterations of functional prototypes within hours by cutting out external vendors and lengthy communication processes, which can significantly improve time and resource efficiency.
Extra Printing Spaces for Any Prototyping Needs
With Sonic Mega 8K V2’s extra printing space and 43 µm XY-resolution, flexibility is in the palm of the hand. Complete larger prototypes or variations of smaller ones in a single batch, reducing the downtime and further accelerating the testing and development process.
Cost-Effective Small-Batch Production for Testing
Compared to traditional CNC or injection molding, Sonic Mega 8K V2 can quickly produce a small batch of prototypes at a more affordable cost. Validate and refine designs early, too see reliable products before committing to larger investments with full-scale manufacturing.
Save Development Time
Sonic Mega 8K V2 supports stabler and faster print speed, suitable for rapid, high-quality prototype iterations and small-batch productions.
Specifications
| Printing Volume | L33 x W18.5 x H40 cm |
| Printing Speed | Avg. 400 layers/hr |
| XY Resolution | 43 µm |
| Layer Thickness | 0.01 - 0.30 mm |
| Light Source | 405nm ParaLED® Matrix 3.0 |
| LCD Specification | 15" 8K Mono LCD |
| Operation | 5" Touch Panel |
| Slicer Software | CHITUBOX V1.9.6 and above (or others) |
| Compatible File Format | .CTB / .PRZ |
| Connectivity | USB |
| Printer Size | L47.5 x W40 x H68 cm |
| Printer Weight | 35 kg |
| Power Requirement | AC100-240V ; 50/60HZ |
| System Power | Max 240W |
| Rail | Single Linear Rails |
| Screw | Ball Screw |
| Release Film | ACF Film |
