i2R CNC - Discovery 8 CNC Machine
Order in the next [totalHours] hours %M minutes to get it between and
Description
Product Description

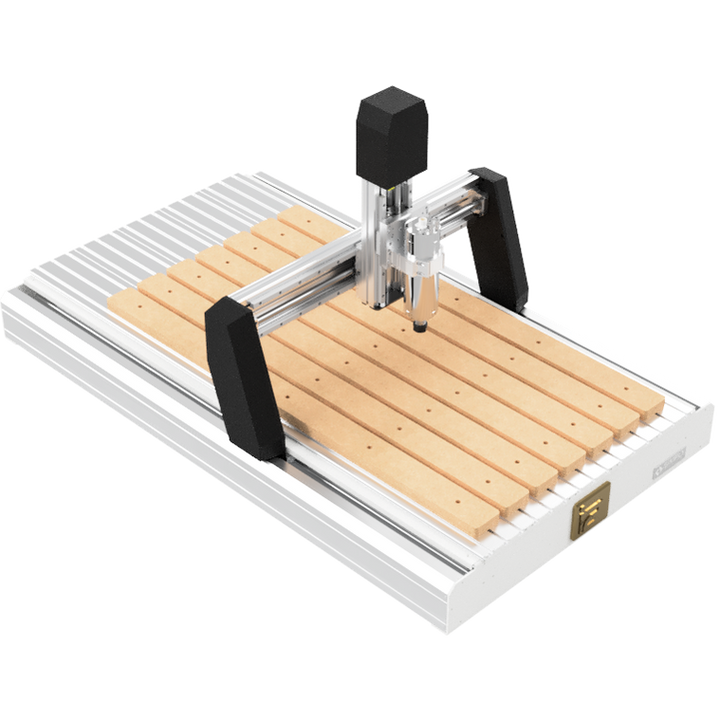

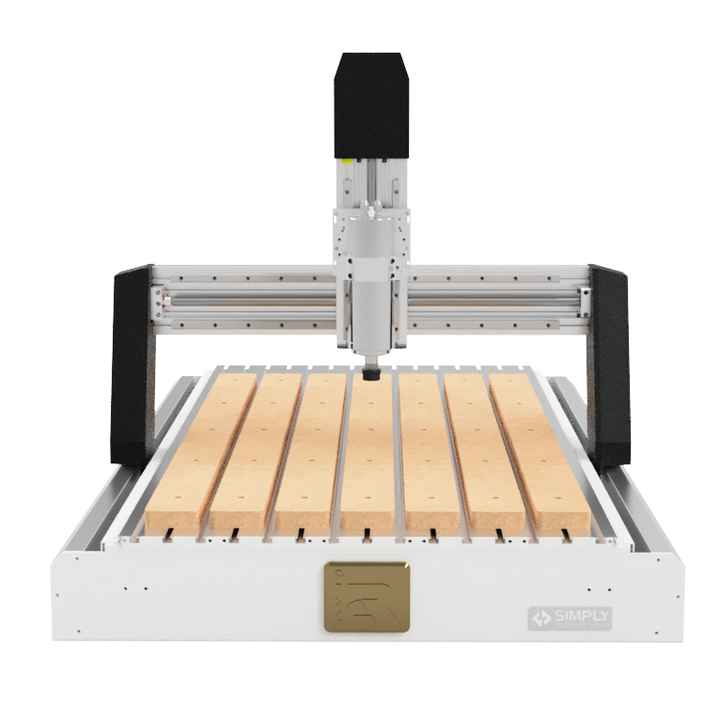

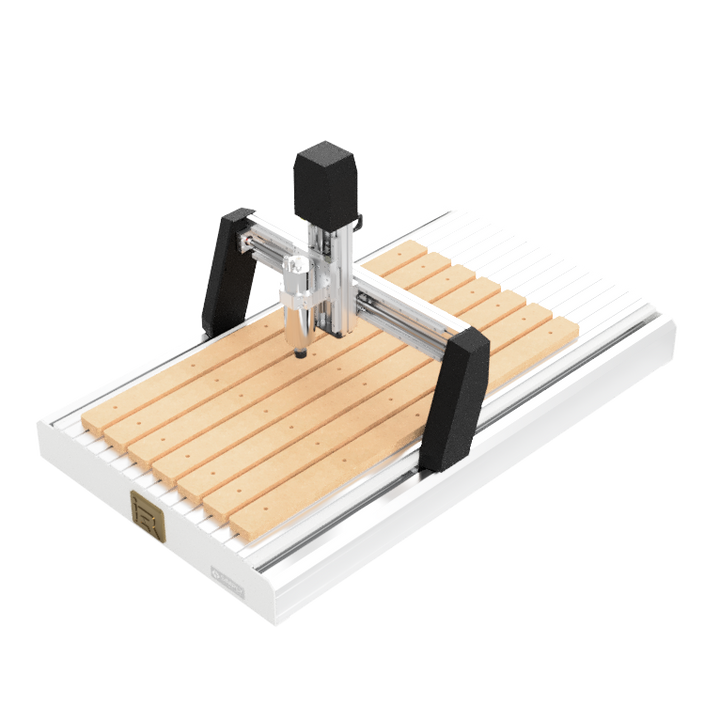

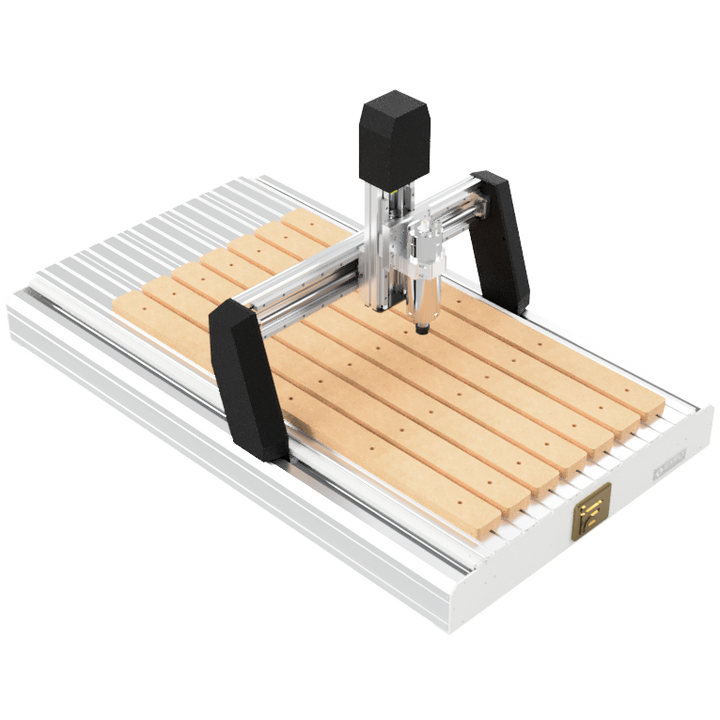

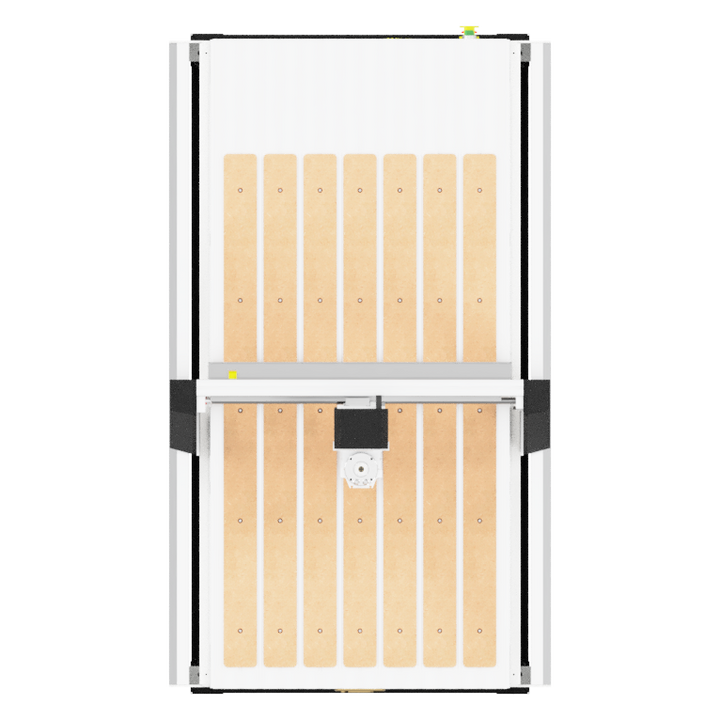

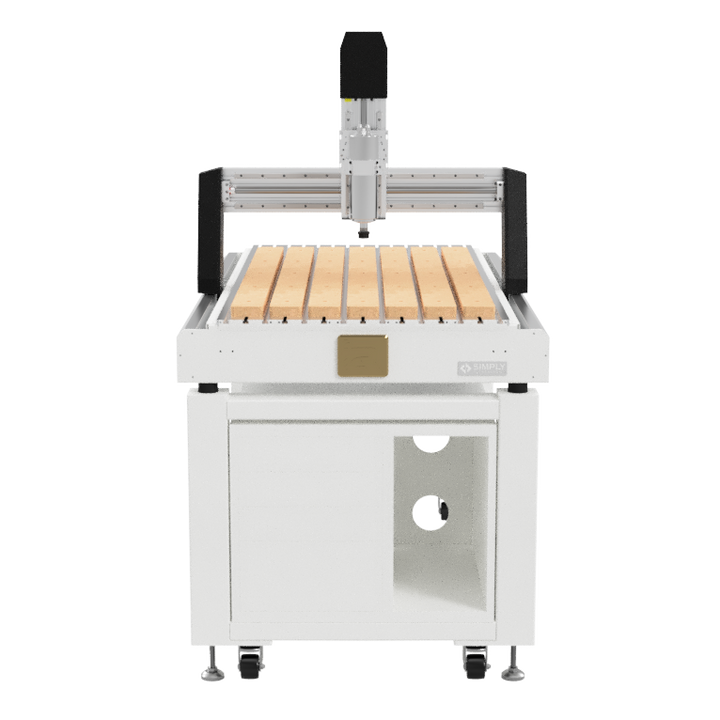

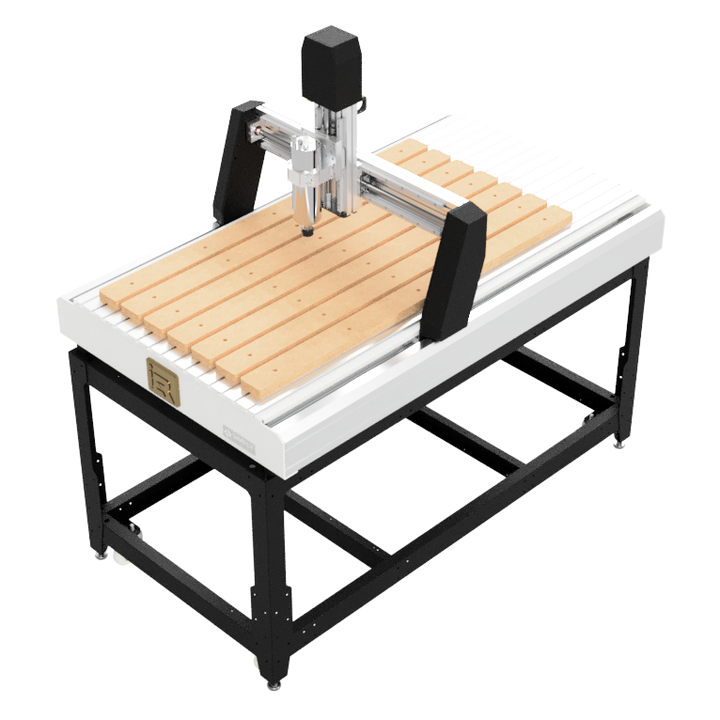

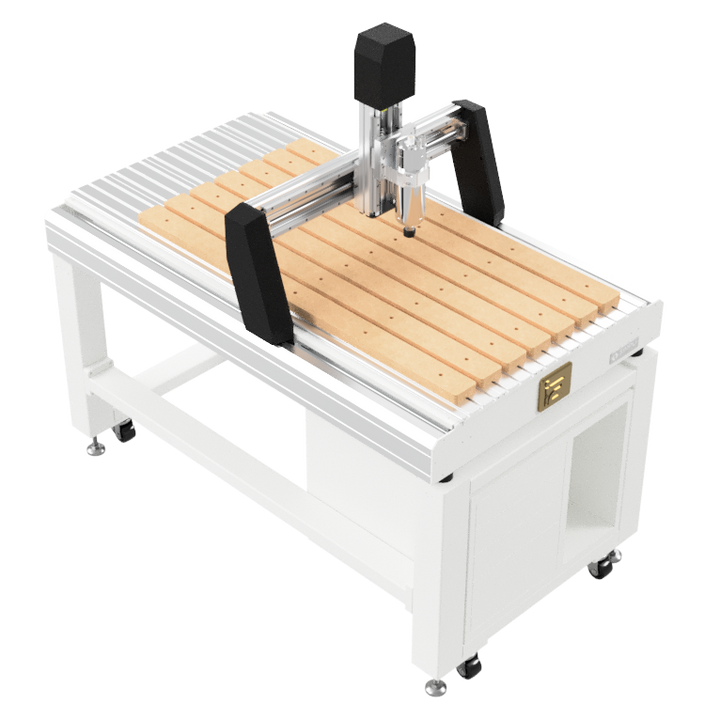

The DISCOVERY 8 is a full-size CNC machine that combines industrial-grade components with an entry-level price point. Featuring a 3HP Air-Cooled Spindle and 24” x 48” workspace, it is designed for small shops, schools, and serious hobbyists, it delivers professional performance at an affordable cost.

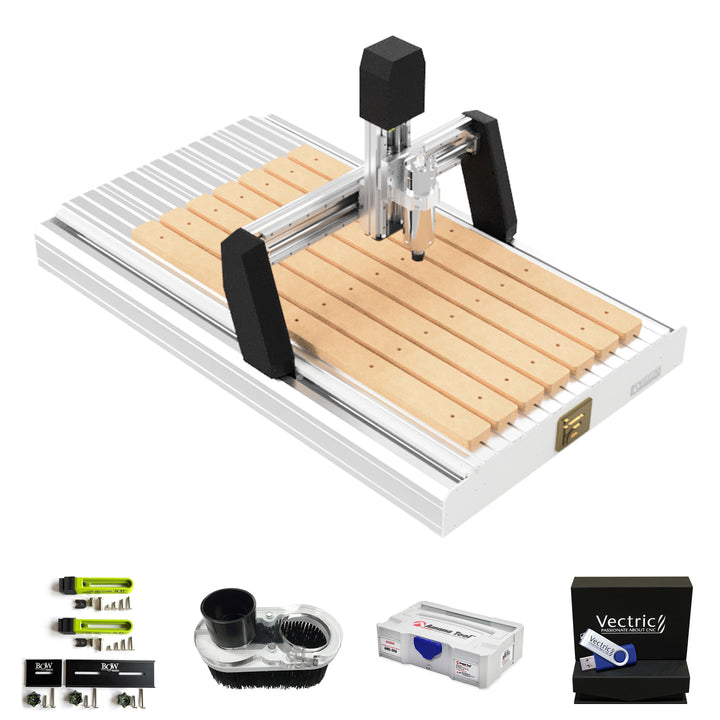

Features

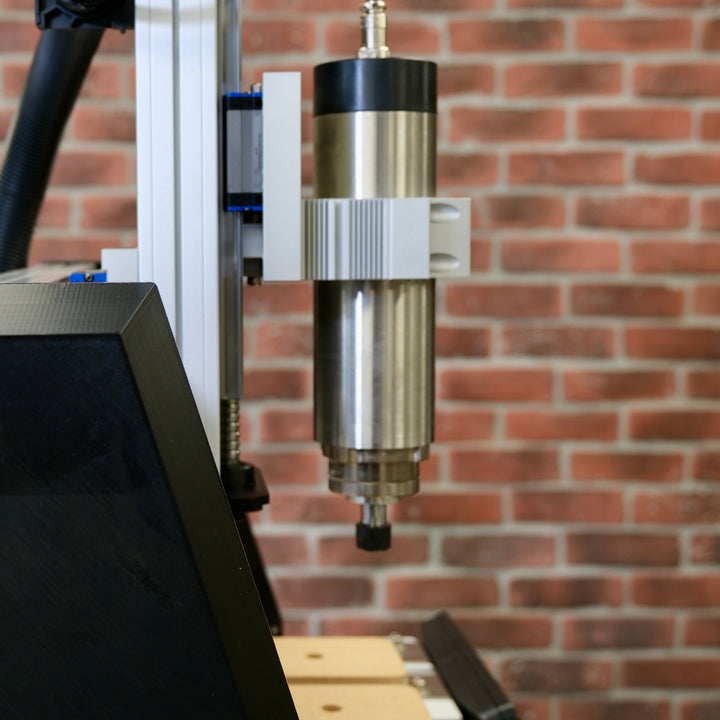

- 3HP Air-Cooled Spindle
- 24" x 48" Workspace
- Tool Touch-Off Pluck
- Wrench Set

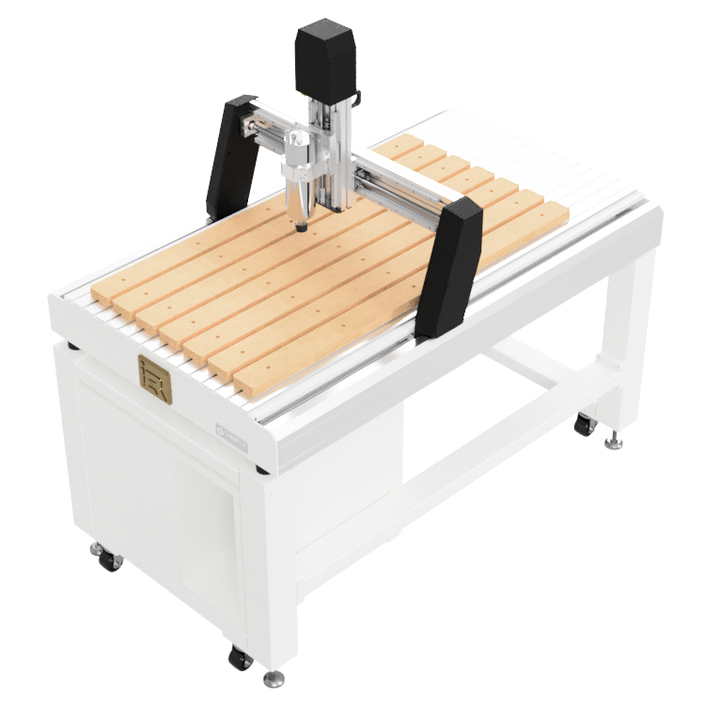

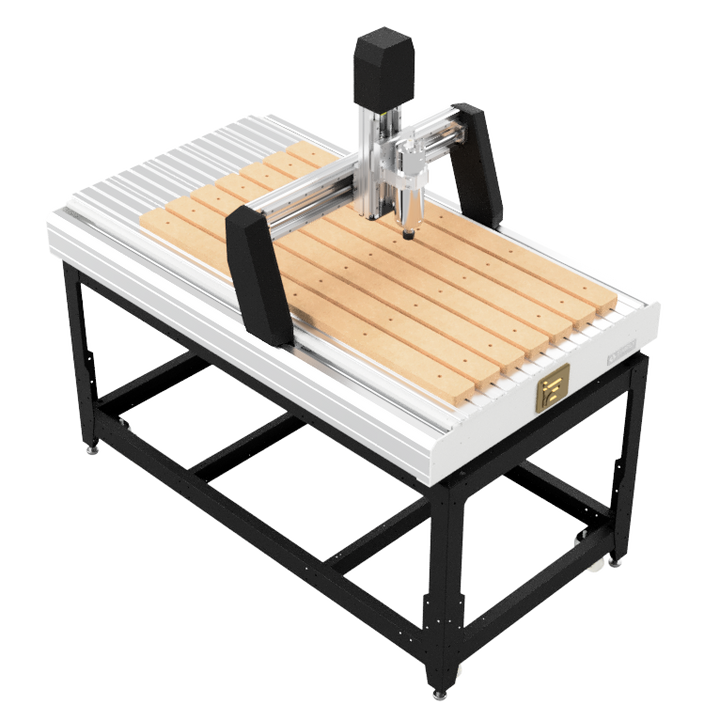

- Discovery 16 Stand
- 1/4" Collet + 1/2" Collet
- Hold Down Clamps - Set of 2
Specifications
| Specification | Details |
|---|---|
| X-Axis Travel | 24" (610mm) |
| Y-Axis Travel | 48" (1220mm) |
| Z-Axis Travel | 7.87" (200mm) |
| Spindle Type | 3HP Air Cooled |
| Spindle Configuration | ER20 (1/4" & 1/2") |
| Controller | eCNC (7" Touch Screen) |
| Rapid Feed Rate | 150ipm (3.81m/min) |
| Resolution | ± 0.00393" (0.10mm) |
| Power Requirements | 220V, 50–60Hz, 10A, 1-Phase |
| Machine Base | High Rigidity Aluminum Extrusion |
| Working Table | High Rigidity Aluminum Extrusion |
| Gantry Bridge | High Rigidity Aluminum Extrusion |
| Gantry Supports | Steel Plate |
| Machine Dimensions | 63.13"L × 36.22"W × 33.64"H (1603.5mm × 920mm × 854.5mm) |
i2R CNC - Discovery 8 CNC Machine
$6,799.00
