Description
Product Description

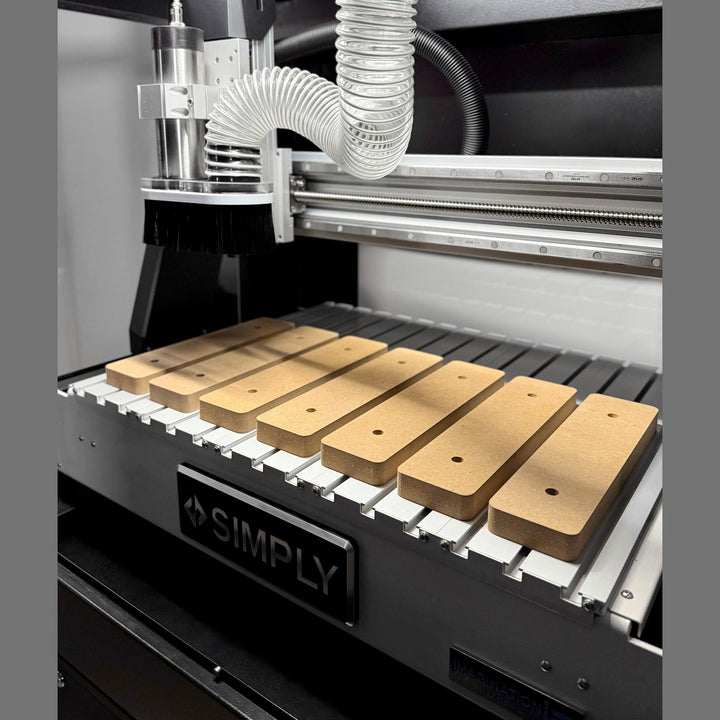

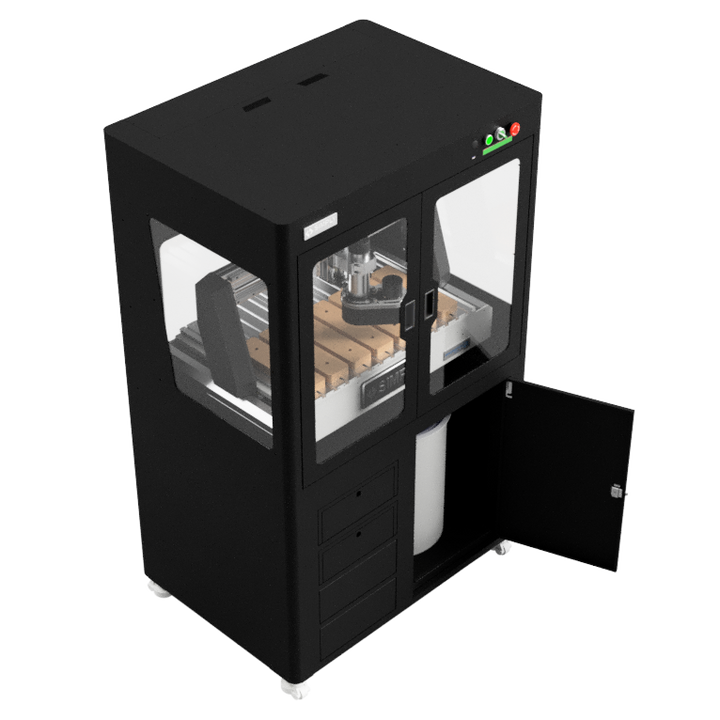

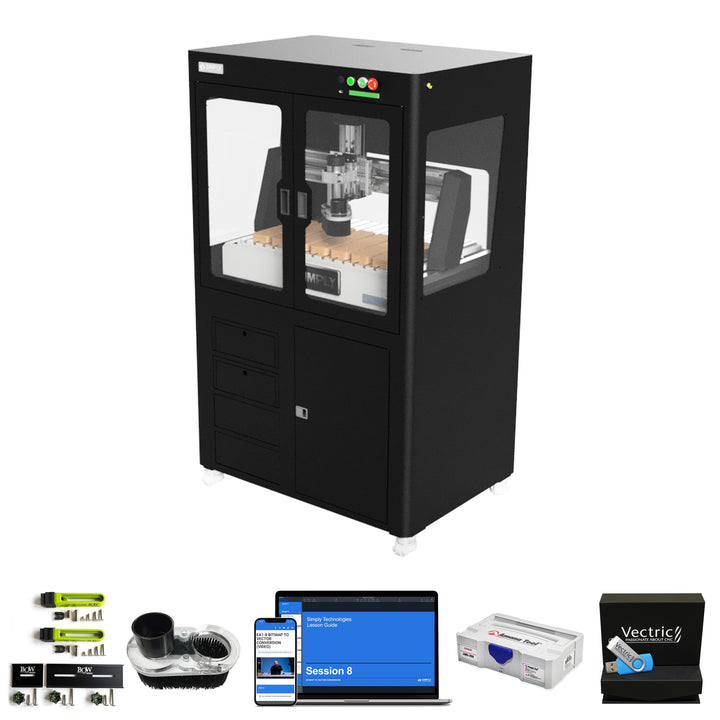

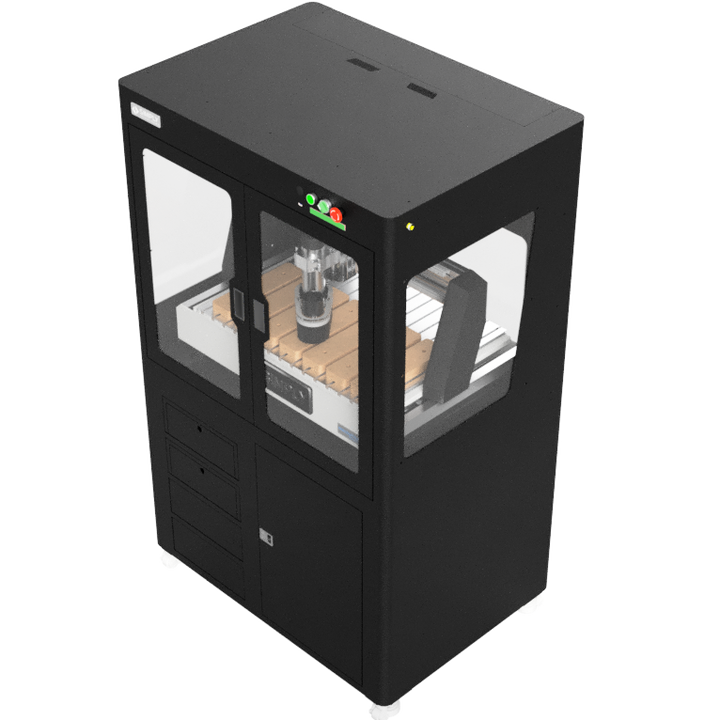

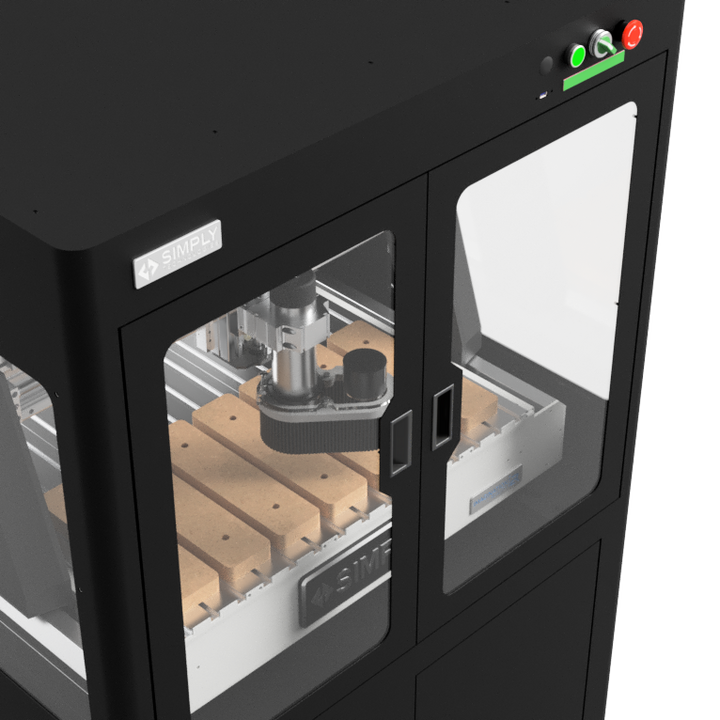

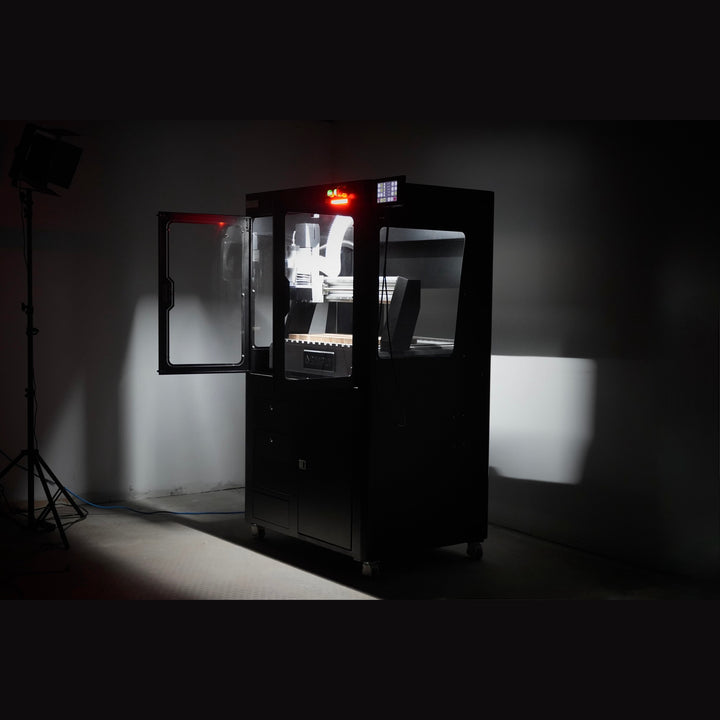

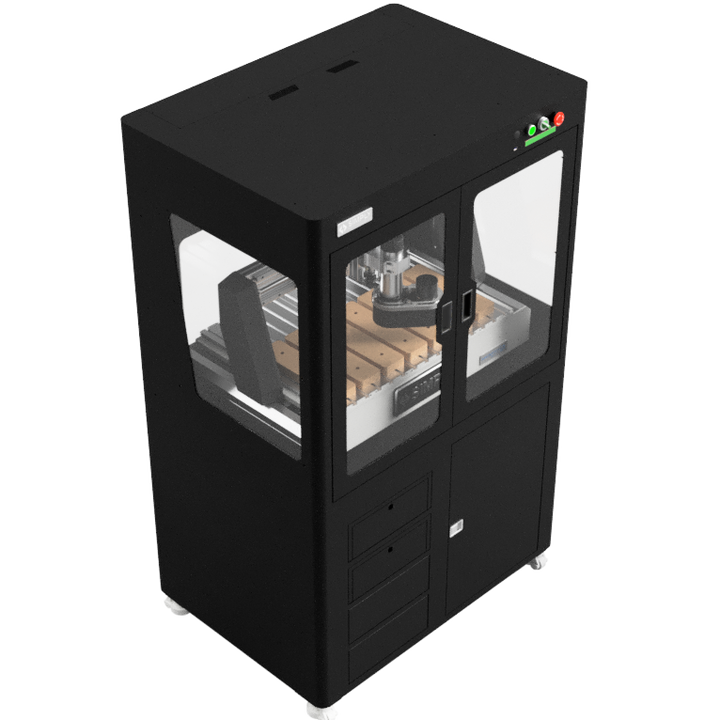

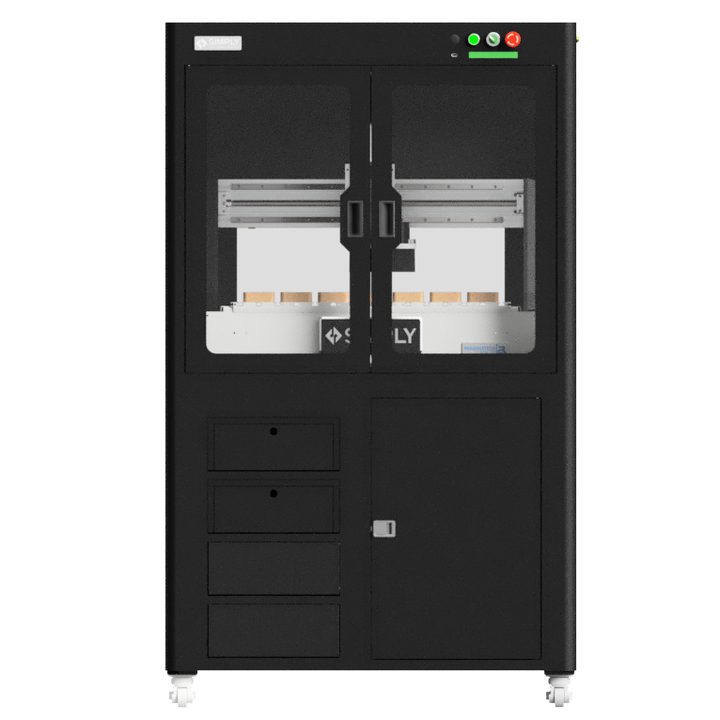

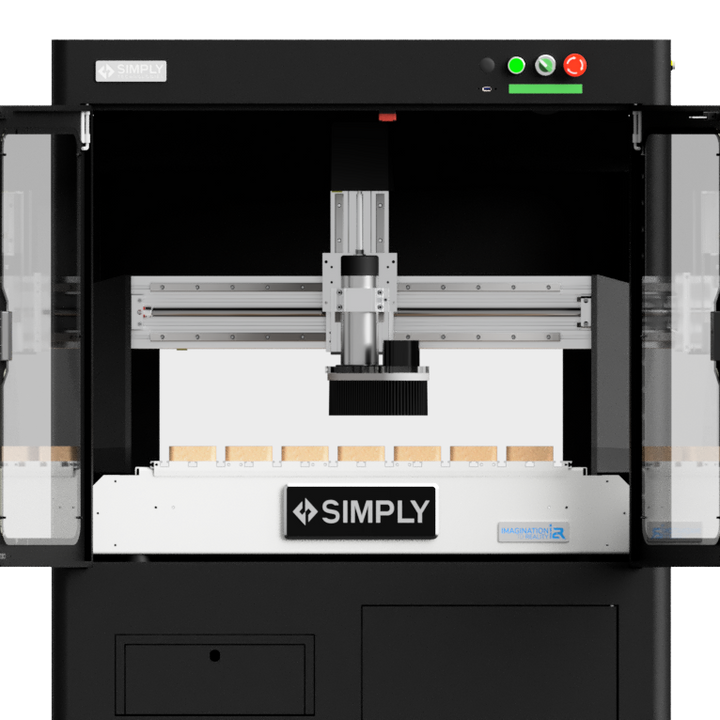

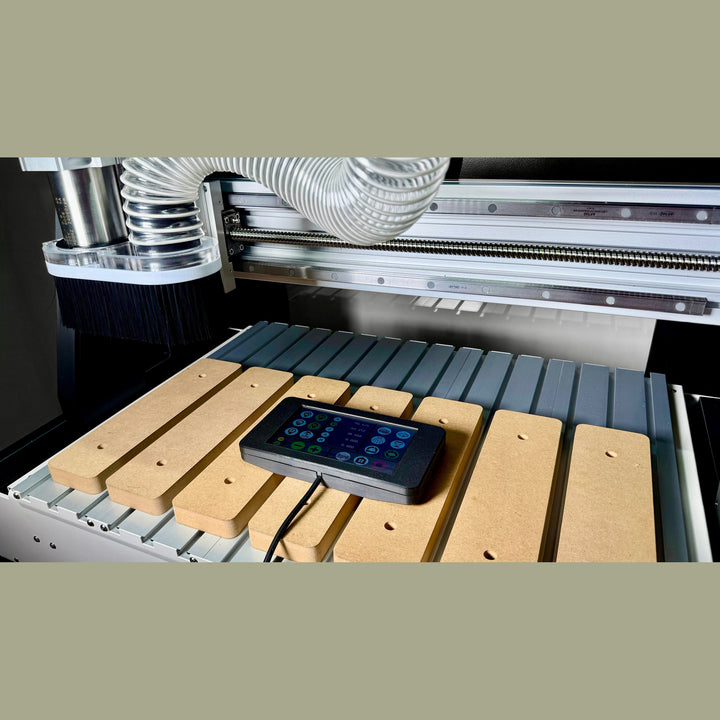

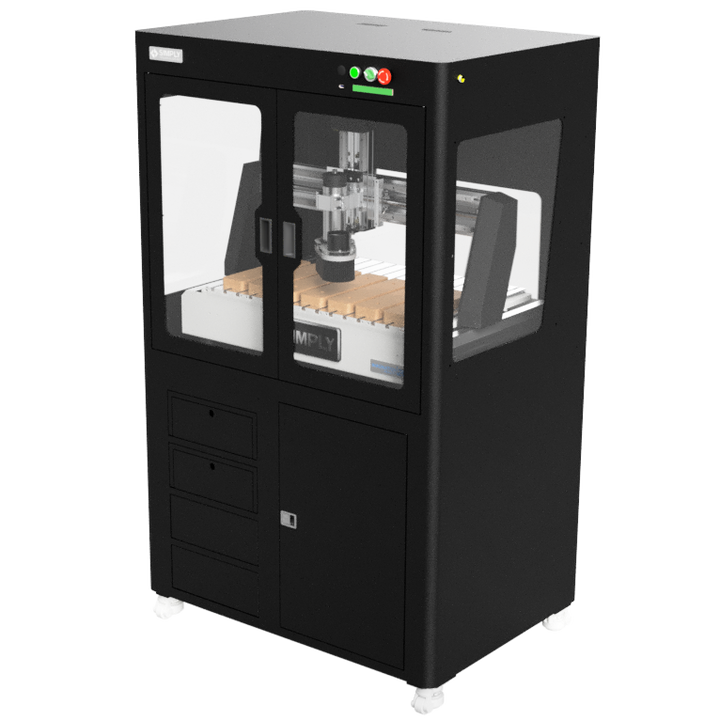

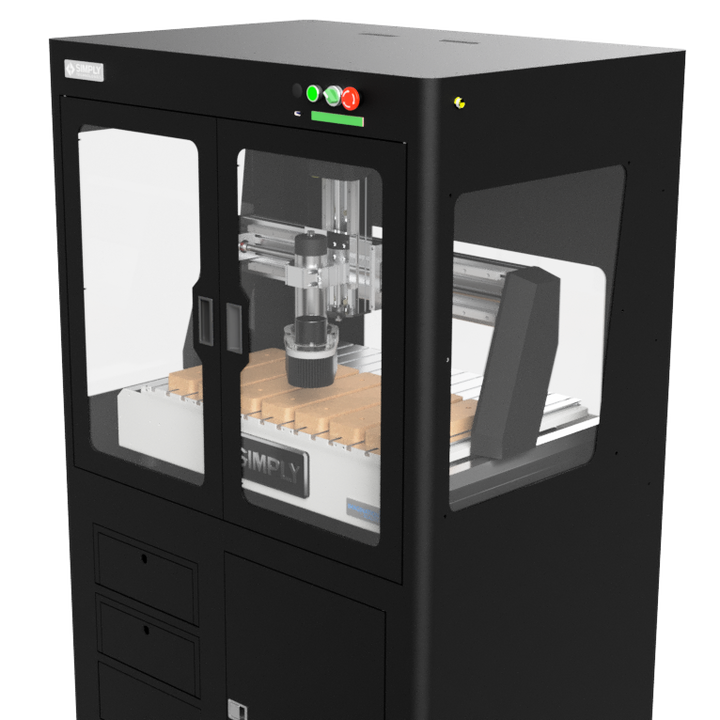

The ACADEMY 2 is a true plug-and-play CNC solution designed for safety and mobility, housed in a fully-enclosed matte black cabinet with interlocking safety doors, and features a built-in dust collection system, integrated tool storage drawer, and locking casters for easy movement between classrooms. It features a 12” x 24” cutting area, a 1HP spindle, delivering clean, quiet performance for the workspace.
Features
- Interlocking Safety Doors

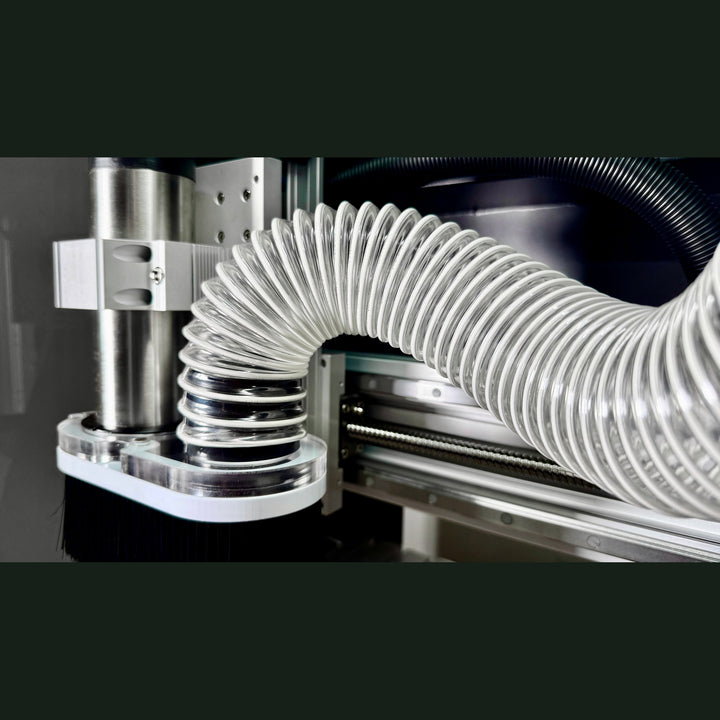

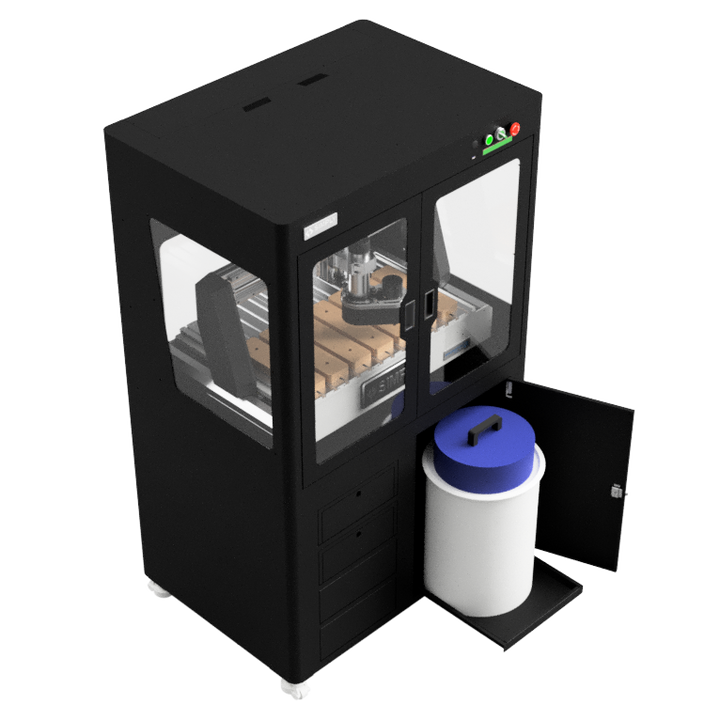

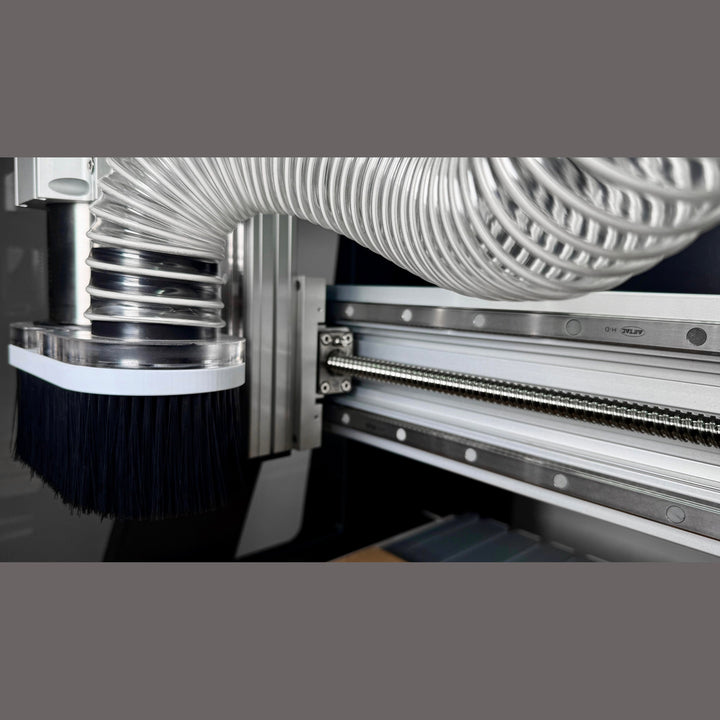

- Built-In Dust Collection System
- Integrated Tool Storage Drawer
- Locking Casters
- 12" x 24" Cutting Area
- 1HP Spindle
- Tool Touch-Off Puck
- Wrench Set
- 1/8" Collet + 1/4" Collet
- 110 Dust Shoe
- LED Kit
- Hold Down Clamps - Set of 2
Specifications
| Specification | Details |
|---|---|
| X-Axis Travel | 24" (610mm) |
| Y-Axis Travel | 12" (305mm) |
| Z-Axis Travel | 5.5" (140mm) |
| Spindle Type | 1HP Air Cooled |
| Spindle Configuration | ER11 (1/8" & 1/4") |

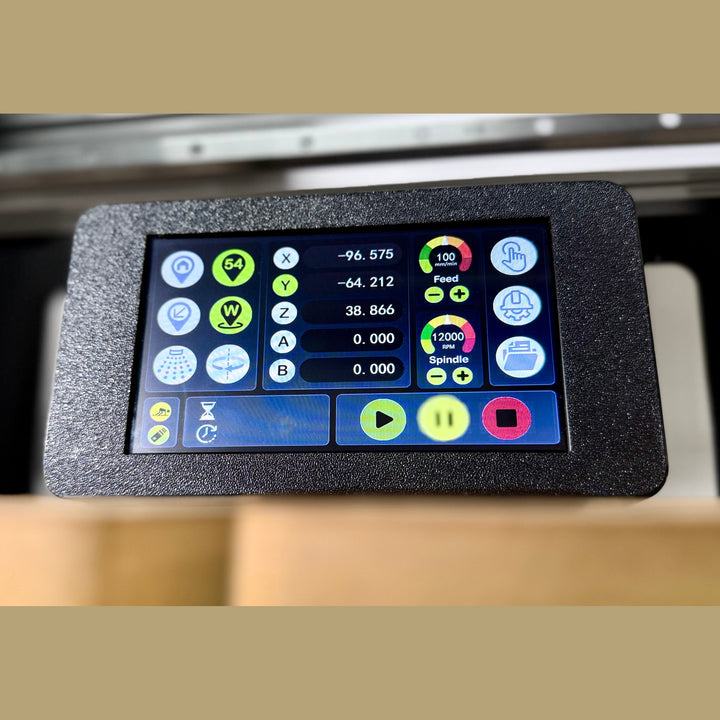

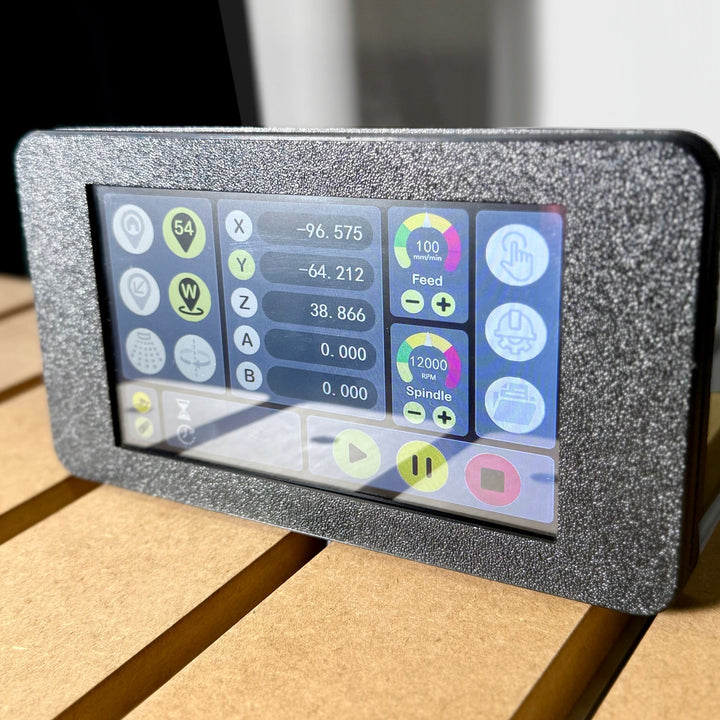

| Controller | eCNC (7" Touch Screen) |
| Rapid Feed Rate | 150ipm (3.81m/min) |
| Resolution | ± 0.00393" (0.10mm) |
| Power Requirements | AC 110V, 50–60Hz, 15A, 1-Phase (Optional 220V, 50–60Hz, 10A, 1-Phase) |
| Machine Base | High Rigidity Aluminum Extrusion |

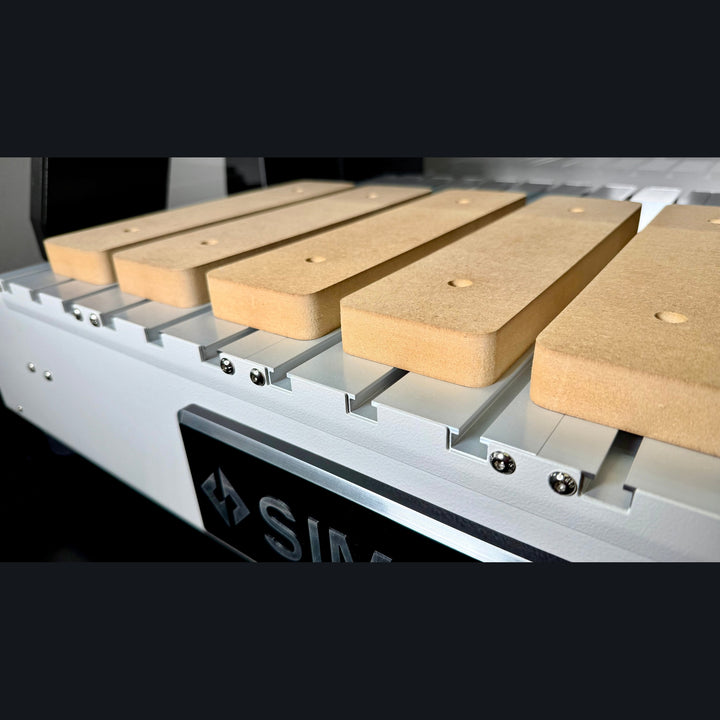

| Working Table | High Rigidity Aluminum Extrusion |
| Gantry Bridge | High Rigidity Aluminum Extrusion |
| Gantry Supports | Steel Plate |
| Machine Dimensions | 31.5"L × 43.7"W × 69.7"H (800mm × 1110mm × 1770mm) |
| Machine Weight | 573.2 lbs (260 kgs) |
| Shipping Weight | 782.6 lbs (355 kgs) |
